Features

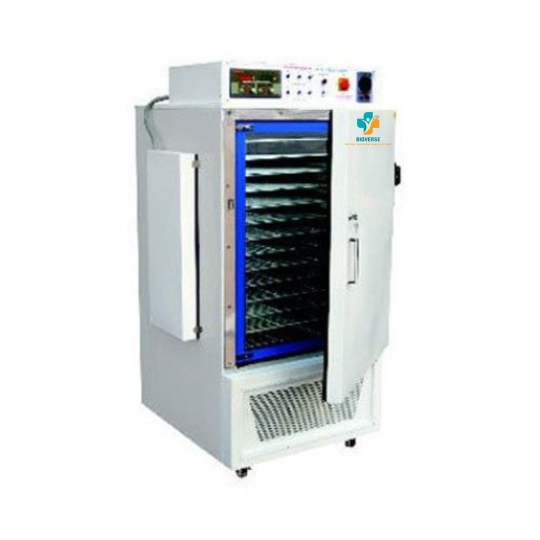

Germinators are useful for seed testing, biological studies, forestry research works etc.
With a solid double walled door and a full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without distributing the process temperature.
Excellent quality magnetic gum packing door gasket for external door.
User oriented design of shelves makes you adjust each space of shelves without difficulty.
Forced air circulation at triple walled back by durable coaxial blower, maintains optimum temperature uniformity and homogeneity.
High grade PUF Insulation between outer and inner chamber for minimal thermal losses.
Caster wheel mounted for easy portability.
Front double walled door is provided with lock and key arrangement.
Door operated illumination lamp is fitted inside the chamber for easy visibility.
Finned tube evaporator facilitates uniform and faster cooling effects.
Safety Thermostate to prevent overheating.
TECHNICAL SPECIFICATIONS
Type : Forced Convection Type
Freezer Compressor : Hermetically sealed air cooling compressor system
Temperature Range : 5°C to 60°C
Accuracy : ±1°C (at 37°C)
MOC Outer : CRC Sheet duly powder coated
MOC Inner : Chamber and trays made of Stainless Steel (SS-304)
Controller : Fitted with Microprocessor based Digital Temperature Indicator-cum-controller with LCD Display for Set Value (SV) & Process Value (PV) OR HMI-PLC TFT Touch Screen Display Controller. (OPTION)
Humidity (Not Adjustable) : Created in a S.S. water reservoir fitted at the bottom to provide 90% to 95% +3%RH
Electric Supply : 220/230V AC, 50/60 Hz.
Technical Specifications & Ordering Informations
MICROPROCESSOR DIGITAL CONTROLLER WITH LED DISPLAY
Model Internal Dimension (WXDXH) (mm) Gross Chamber Capacity Gross Chamber Valume No. of Shelves
#SGSC-11(LED) 555x605x910 310 ltrs 11 Cuft 14
MICROPROCESSOR DIGITAL CONTROLLER WITH LCD DISPLAY
Model Internal Dimension (WXDXH) (mm) Gross Chamber Capacity Gross Chamber Valume No. of Shelves
#SGSC-11(LCD) 555x605x910 310 ltrs 11 Cuft 14
HMI-PLC BASED TFT TOUCH SCREEN DISPLAY CONTROLLER
Model Internal Dimension (WXDXH) (mm) Gross Chamber Capacity Gross Chamber Valume No. of Shelves
#SGSC-11(TFT) 555x605x910 310 ltrs 11 Cuft 14
Options
Illumination with fluorescent tubes and 0 – 24 hrs cyclic timer to control cyclic illumination conditions.
G-LOG – Fully automatic digital (FAD) with real time data logger with CENTRONIC PRINTER PORT (DOT MATRIX) and USB Port for taking data (Paperless Data Recording) and Saving ON PC. (DOT Matrix Printer to customer scope)
P-LOG – Fully automatic digital (FAD) with real time data logger with CENTRONIC PRINTER PORT (DOT MATRIX) and RS-485 PC communication port with 21 CFR compliant software and data cable for logging data directly to your PC. (DOT Matrix Printer and PC to customer scope)
Automatic Voltage Stabilizer to cost extra.
