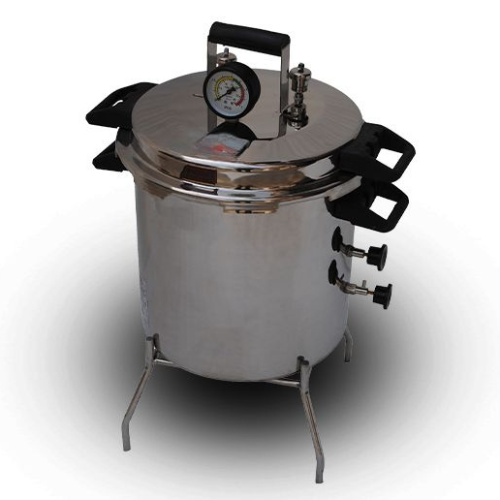

PORTABLE AUTOCLAVE LEW-103

Standard single-walled Stainless Steel analog model for general sterilizing requirements fully with safety valve, exhaust valve, and pressure gauge

SKU: LEW-103 Categories: ,

Features

  • Our portable Autoclaves are most ideal for doctors, nursing homes, laboratories, dentists, etc.
  • Most ideal for general laboratory requirement where samples in small batches are required to be sterilized.
  • Hydraulically tested up to 40psi for user safety.
  • Spring-loaded safety valve for pressure adjustment and a dead weight valve works as a safety device.
  • Economy at your fingertips with low power consumptions.
  • A seamless (joint less) body for single-walled units provides a sturdy and safe operation for the user.
  • Low sterilization process time accounts for a higher number of batches accounting for the economy and faster results.
  • Body, lid & heater cover made of Single-Walled Stainless Steel (SS-304).
  • Simple and easy “Press & turn” system of the closing lid for single-walled units.
  • Lid is fitted with Pressure Gauge, Safety Valve, Manual Exhaust Valve.
  • Vacuum breaker-cum-purge valve works as a safety device.
  • Moulded neoprene rubber gasket.
  • Heater cover stand made of stainless steel (SS-304)
  • Industrial grade energy efficient heaters reduce power bills drastically

Technical Specifications & Ordering Informations

Model #PA-20
Inner Dimensions (Dia x Height) 300x350mm
Gasket (Jointless) Neoprene
Capacity 20 Ltrs
Heater Load 2.0 KW
Chamber Wall Single
Exhaust of Pressure Manually through a exhaust valve
Pressure Gauge 0-2.1 kgf/cm²(30 psi)
Sterilizing Pressure 0-2.1 kgf/cm² (15 psi) at 121°C
MOC (Pressure Vessel) Stainless Steel (SS-304)
MOC (Top Lid) Stainless Steel (SS-304)
Power Supply 220/230V AC, 50/60Hz
