Description

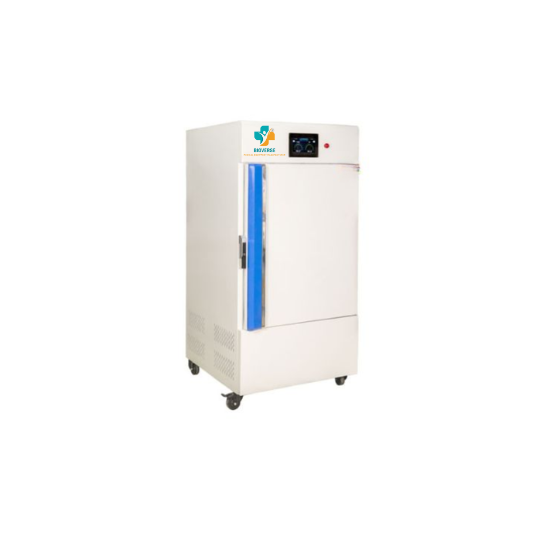

- Suitable for carrying out different quality control tests under controlled conditions of temperature and humidity.
- The excellent quality of magnetic gum packing for the external door.
- User oriented design of shelves makes you adjust each space of shelves without difficulty.
- Inner chamber is made of stainless steel (S.S.-304 Grade) and outer wall of mild steel sheet duly painted and mounted on caster wheel.
- High grade Polyurethane Foam (PUF) insulation between outer and inner chamber for minimal thermal loss.
- Front double walled door is provided with lock and key arrangement.
- A self-cooled air circulation fan is fitted to maintain uniform temperature and humidity condition throughout the chamber.
- Humidity is created through steam generation tank.
- Provided with refrigeration system to control temperature range from 5°C to 60°C ±1°C and humidity 5% above ambient from 40% to 95% RH ± 3% RH at Cool Temperature.
- CFC free eco friendly compressor.
TECHNICAL SPECIFICATIONS
- Type : Forced Convection Type
- Temperature Range : 10°C to 60°C
- Temperature Accuracy : ±1°C (at 37°C)
- Humidity Range : 5% above ambient from 40% to 95%RH at cool temperatures.
- Humidity Accuracy : ±3%RH
- MOC Outer : Powder coated CRC Steel Sheet
- MOC Inner : Chamber and trays made of Stainless Steel (SS-304)
- Temperature Controller : Microprocessor Based Digital Temperature Indicator-Cum-Controller with LED / LCD Display OR HMI – PLC Based TFT Touch Screen Colour Display Controller
- Electrical Supply : 220/230V AC, 50/60Hz.
Technical Specifications & Ordering Informations
| MICROPROCESSOR DIGITAL CONTROLLER WITH LED DISPLAY | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Model | Display Type | Chamber Capacity | Chamber Volume | No of shelves | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-4(LED) | LED | 112 ltrs. | 4.0 Cuft | 2 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-6(LED) | LED | 171 ltrs. | 6.1 Cuft | 2 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-10(LED) | LED | 285 ltrs. | 10.0 Cuft | 3 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-12(LED) | LED | 340 ltrs. | 12.0 Cuft | 3 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-16(LED) | LED | 450 ltrs. | 16.0 Cuft | 4 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-20(LED) | LED | 560 ltrs. | 20.0 Cuft | 4 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-28(LED) | LED | 800 ltrs. | 28.0 Cuft | 6 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-35(LED) | LED | 1000 ltrs. | 35.0 Cuft | 6 | ||||||||||||||||||||||||||||||||||||||||||||||
| MICROPROCESSOR DIGITAL CONTROLLER WITH LCD DISPLAY | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Model | Display Type | Chamber Capacity | Chamber Volume | No of shelves | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-4(LCD) | LCD | 112 ltrs. | 4.0 Cuft | 2 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-6(LCD) | LCD | 171 ltrs. | 6.1 Cuft | 2 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-10(LCD) | LCD | 285 ltrs. | 10.0 Cuft | 3 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-12(LCD) | LCD | 340 ltrs. | 12.0 Cuft | 3 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-16(LCD) | LCD | 450 ltrs. | 16.0 Cuft | 4 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-20(LCD) | LCD | 560 ltrs. | 20.0 Cuft | 4 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-28(LCD) | LCD | 800 ltrs. | 28.0 Cuft | 6 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-35(LCD) | LCD | 1000 ltrs. | 35.0 Cuft | 6 | ||||||||||||||||||||||||||||||||||||||||||||||
| TFT TOUCH SCREEN DISPLAY CONTROLLER | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Model | Display Type | Chamber Capacity | Chamber Volume | No of shelves | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-4(TFT) | TFT | 112 ltrs. | 4.0 Cuft | 2 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-6(TFT) | TFT | 171 ltrs. | 6.1 Cuft | 2 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-10(TFT) | TFT | 285 ltrs. | 10.0 Cuft | 3 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-12(TFT) | TFT | 340 ltrs. | 12.0 Cuft | 3 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-16(TFT) | TFT | 450 ltrs. | 16.0 Cuft | 4 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-20(TFT) | TFT | 560 ltrs. | 20.0 Cuft | 4 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-28(TFT) | TFT | 800 ltrs. | 28.0 Cuft | 6 | ||||||||||||||||||||||||||||||||||||||||||||||
| #SC-35(TFT) | TFT | 1000 ltrs. | 35.0 Cuft | 6 | ||||||||||||||||||||||||||||||||||||||||||||||
Options
- Interior illumination arrangement with a cyclic timer to control cyclic illumination conditions.
- G-LOG – Fully automatic digital (FAD) with real time data logger with CENTRONIC PRINTER PORT (DOT MATRIX) and USB Port for taking data (Paperless Data Recording) and Saving ON PC. (DOT Matrix Printer to customer scope)
- P-LOG – Fully automatic digital (FAD) with real time data logger with CENTRONIC PRINTER PORT (DOT MATRIX) and RS-485 PC communication port with 21 CFR compliant software and data cable for logging data directly to your PC. (DOT Matrix Printer and PC to customer scope)
- Automatic Voltage Stabilizer to cost extra.
