Applications

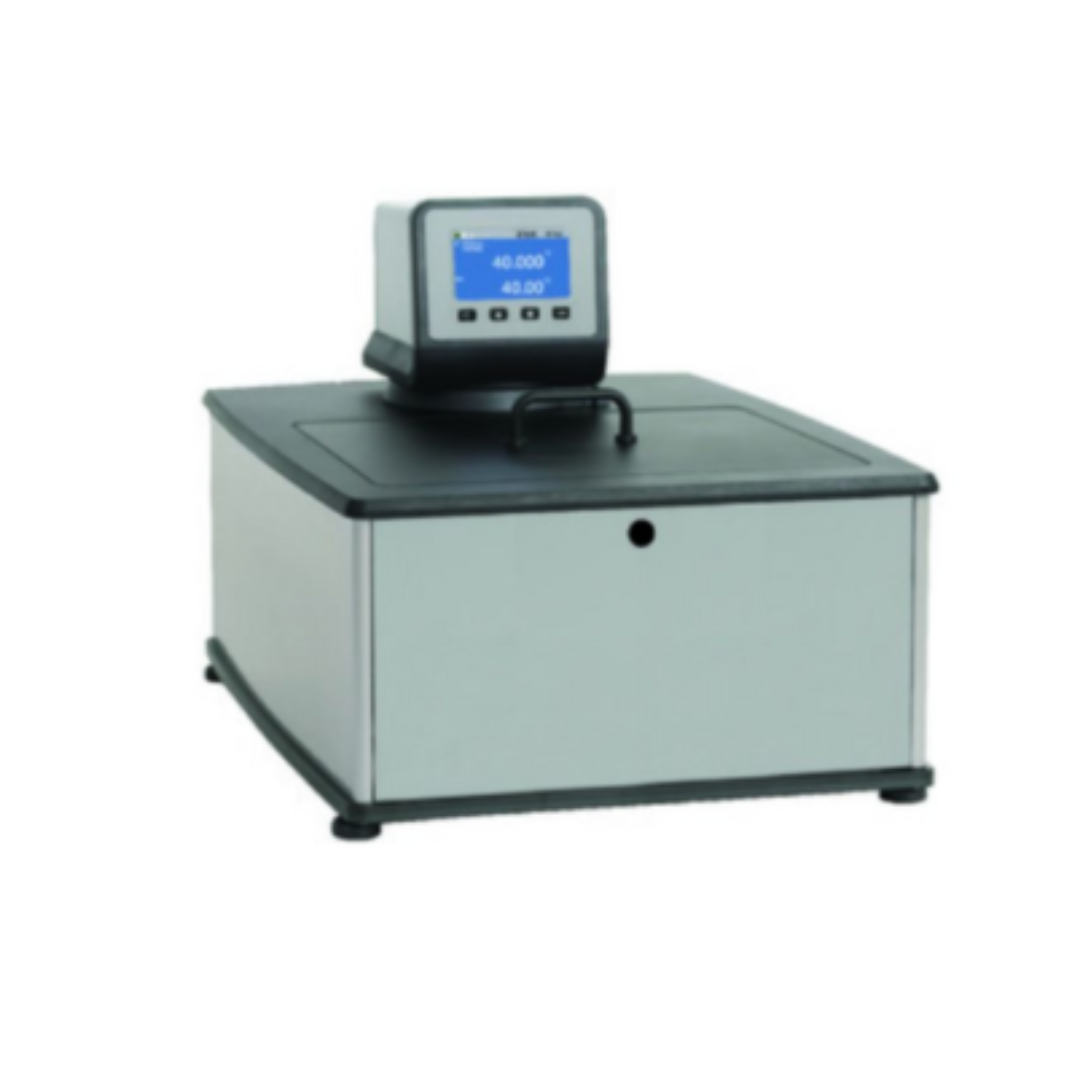

Designed for controlling above ambient temperatures in external instrumentation or for immersion applications. A very handy tool for general lab requirements and applications.

Advantages & Benefits

Compact space saving concept can be placed under or over the workbench.
Effective water/liquid heated circulator for tighter controls.
Reduces tap water consumption thus reducing high cost of water and waste water.
Waste water does not contain hazardous substances thus eliminating danger to personnel and environment caused by solvents.
Builts in circulator pump for efficient circulating processes. Offers highest level of performance, flexibility and control for most demanding applications.
Industrial grade energy efficient heaters reduces power bills drastically.
Fitted with Microprocessor based Digital temperature Indicator-Cum-Controller, to control temperature range from Ambient +5°C to 90°C.
Low noise level.

MOC (Outer) : CRC Sheet duly powder coated
MOC (Inner Chamber & Lid) : Stainless Steel Sheet (S.S.-304 Grade)
Insulation : Filled with high grade mineral wool
Display : LED display for set value (SV) & process value (PV)
Temperature Accuracy : ±0.5°C.
Temperature Display Resolution : 0.1°C.
Circulating Pump : Powerful pump with 15 Lpm capacity at zero head (for water)
Silicon Tubing : Supplied with 2 No. of rubber tube of 1 mtr each as standard accessory
Advisable : Do not use water above 90°C (use silicon oils above 90°C)
Work on : 220/230 Volts, 50/60 AC supply.

Technical Specifications & Ordering Informations
