Features

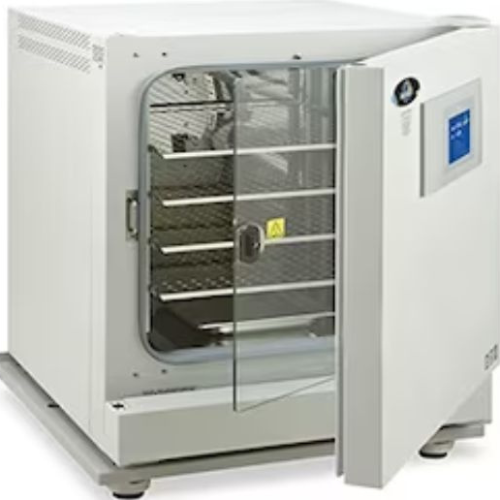

- “MAC” CO2 Incubators are efficient and reliable instrument which provide outstanding contamination prevention with optimal growing conditions for the culture of cells. These are designed to provide optimum sterile environment under a CO2 atmosphere for your demanding and highly critical applications in cancer research, in-vitro fertilization, in tissue engineered products, diagnostics and various other medical, pharmaceutical industries.
- “MAC” CO2 Incubator is developed with the introduction of new techniques as compared with common CO2 Incubators.
- This type provides faster heating and less errors of temperature precision.
- Outer made of CRC sheet duly powder coated.
- Inner made of specular stainless steel by argon-arc welding techniques and semicircular arcs at corners ensure easy cleaning.
- Microprocessor temperature controller makes temperature stability Independent alarm system for temperature limiting ensures experiment run safely and no accident would happen.
- Temperature range from Ambient +5°C to 50°C.
- Microorganism filter at inlet provides 100% filtrated gases
- Equipped with fully automatic CO₂ pressure-releasing and purging valve.
- IR CO₂ sensor for precise CO2 inside the chamber with a CO₂ control range of 0~20%.
Technical Specifications & Ordering Informations
| Model | #CDI-50(UVC) | #CDI-80(UVC) | #CDI-160(UVC) |
|---|---|---|---|
| Capacity | 50 Ltrs | 80 Ltrs. | 160 Ltrs. |
| Disinfection | UV LIGHT DISINFECTION | ||
| MOC Inner Chamber | Stainless Steel (SS-304) | ||
| Temperature Range | Non-Refrigerated, Temp. Ambient +5°C to 50°C | ||
| Temperature Controller | MICROPROCESSOR DIGITAL CONTROLLER WITH LED DISPLAY OR HMI-PLC BASED TFT TOUCH SCREEN DISPLAY CONTROLLER | ||
| Temperature Control | 0.1°C | ||
| Temperature Stability | ± 0.3°C | ||
| CO₂ Control Range | 0~20% (Infrared Sensor) | ||
| CO₂ Recovery | ≤ Calibration x 1.2min | ||
| Humidifying Method | Natural Evaporization | ||
| Ambient Temperature | +5 ~35°C | ||
| Incubator Sterilizer | UV method | ||
| No. of Shelves | 1 | 2 | 3 |
| Interior Dimension (WxDxH) | 355 (W) x 355 (D) x 405 (H) mm | 460 (W) x 465 (D) x 525 (H) mm | 510 (W) x 540 (D) x 625 (H) mm |
| Input Power | 250W | 250W | 300W |
| Electrical Requirement | 220V, 50Hz | ||
Options
- Oxygen control range from 0.2% to 20%.
- High Pressure seamless Carbon Dioxide gas Cylinder of 10 Ltrs. Water Capacity & double stage gas regulator. Complete with neck ring and valve with 99.99% pure Carbon Dioxide.
- Nitrogen cylinder 10 Ltrs. Water Capacity & double stage gas regulator. Complete with neck ring and valve with 99.99% pure Carbon Dioxide
